This product has now been replaced by the dormakaba ES250 PRO Easy, which can be found here. Please contact RTR Services today for details of the new operator.

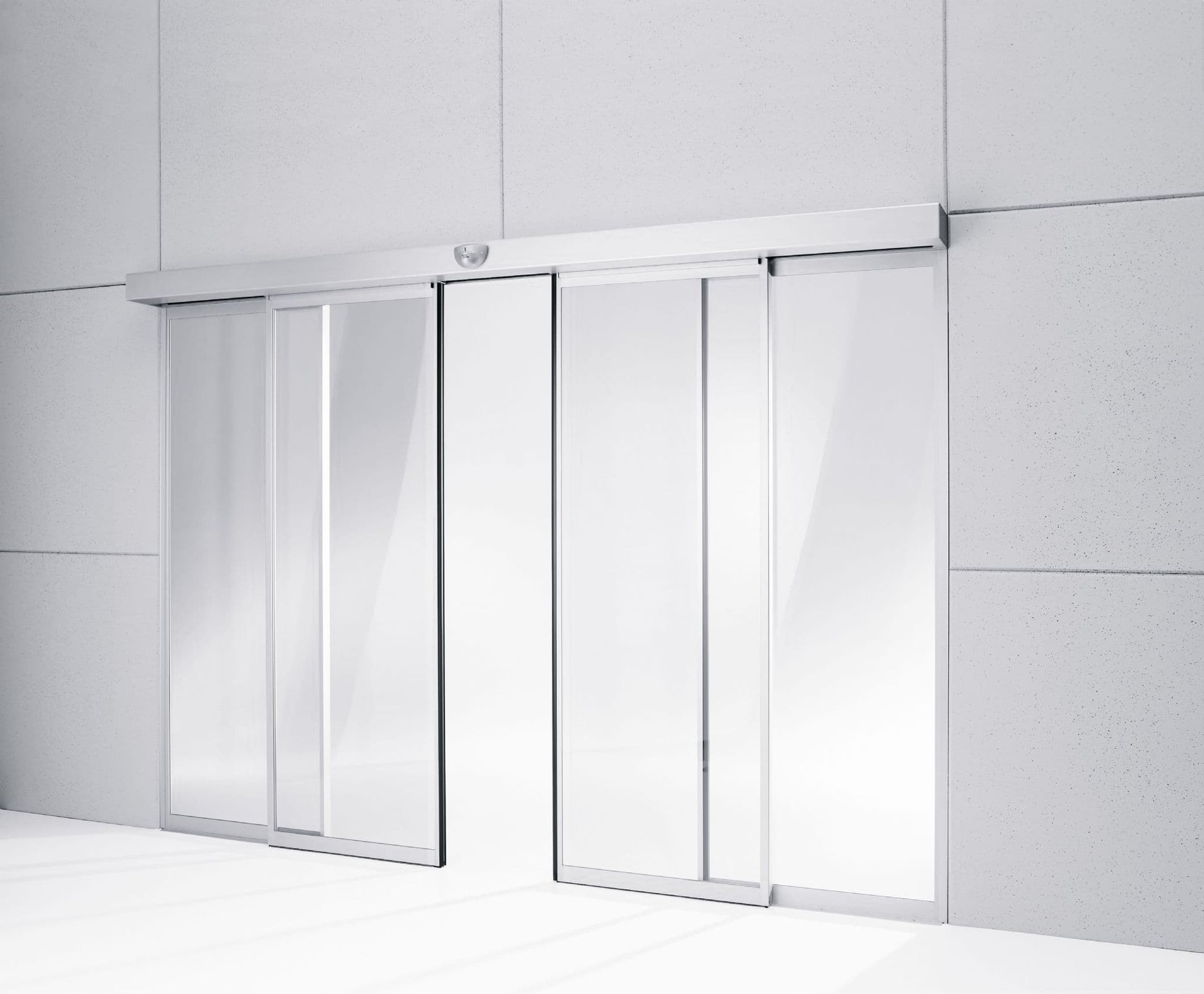

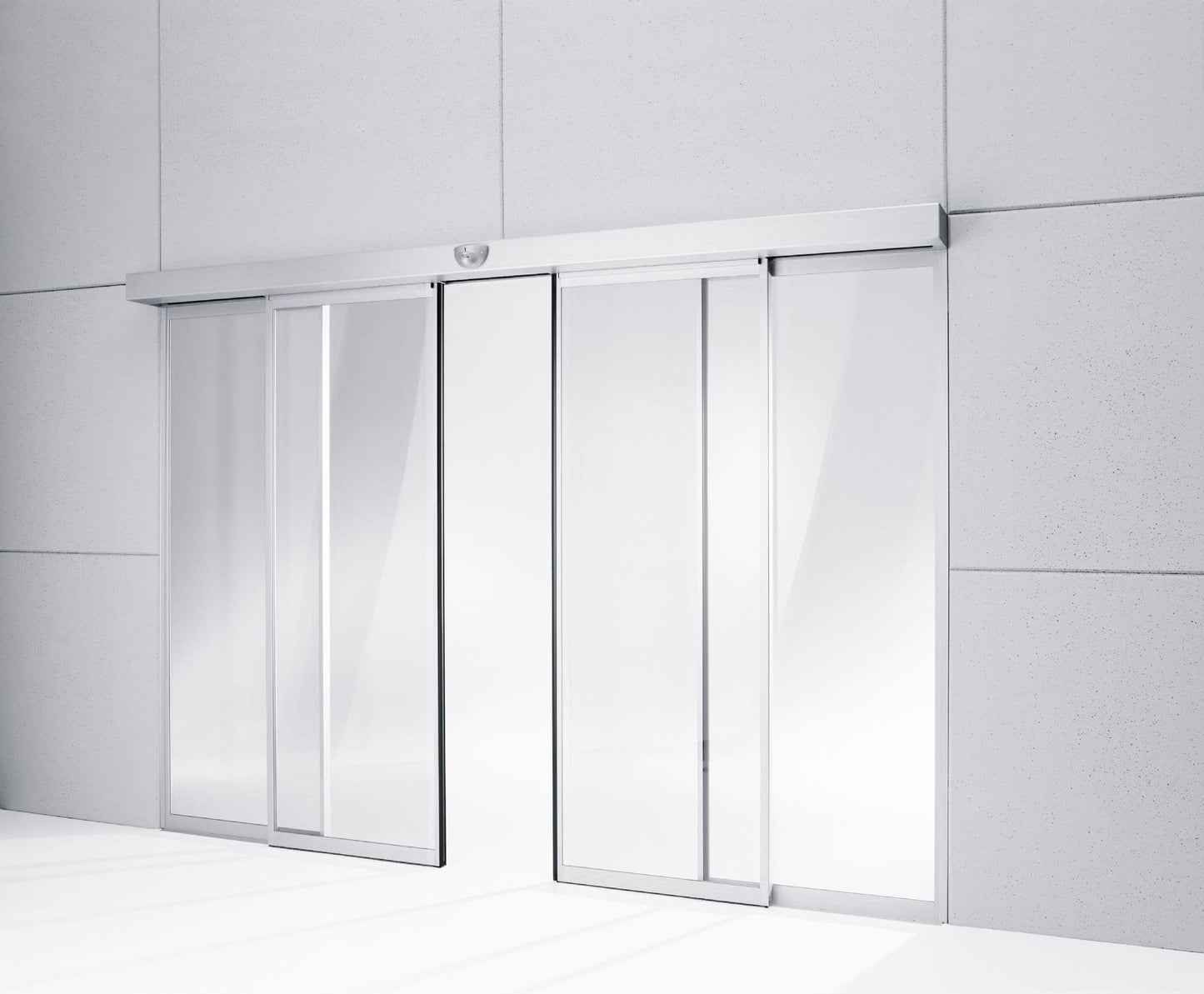

ES200 Standard sliding door operator

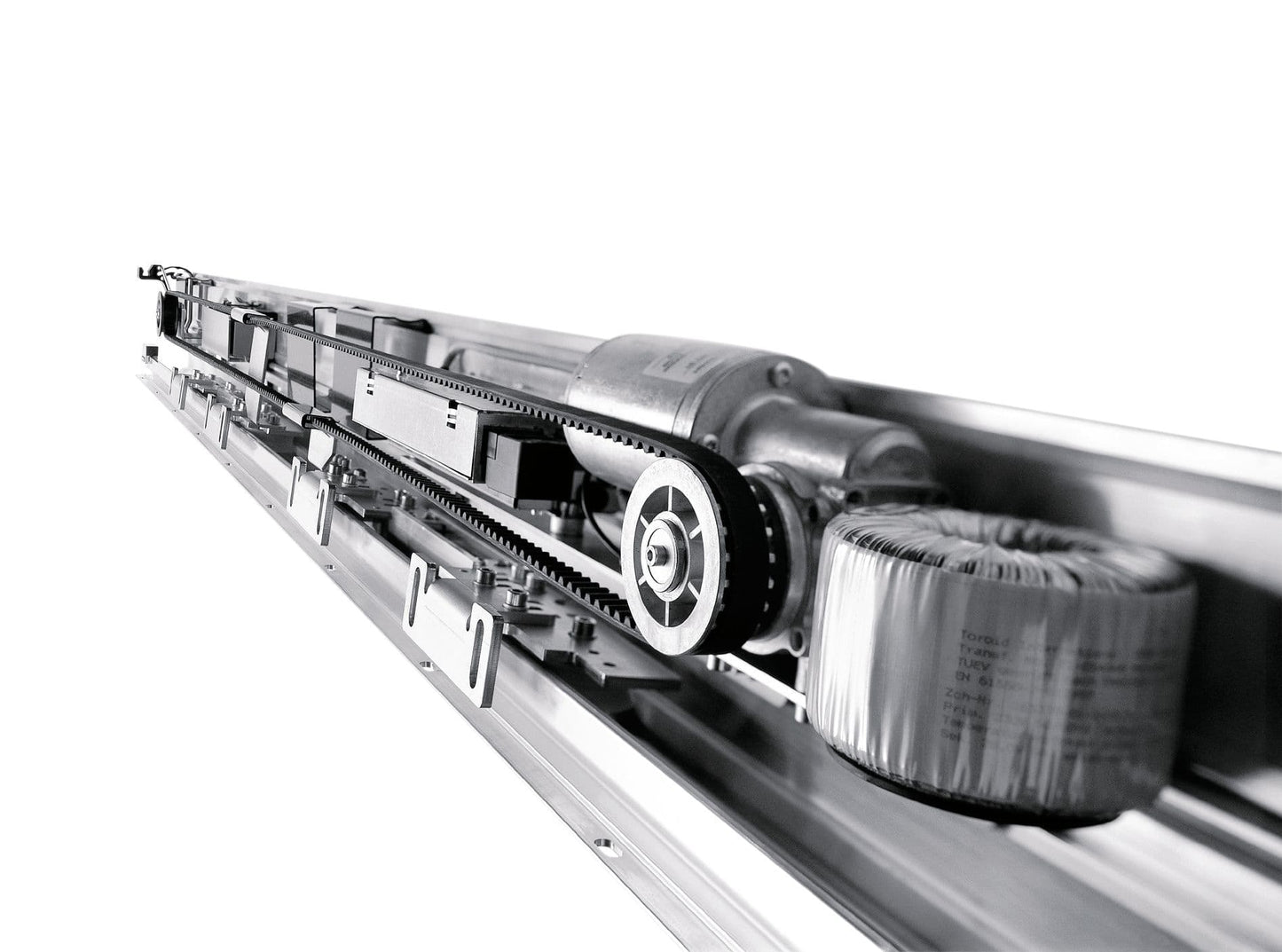

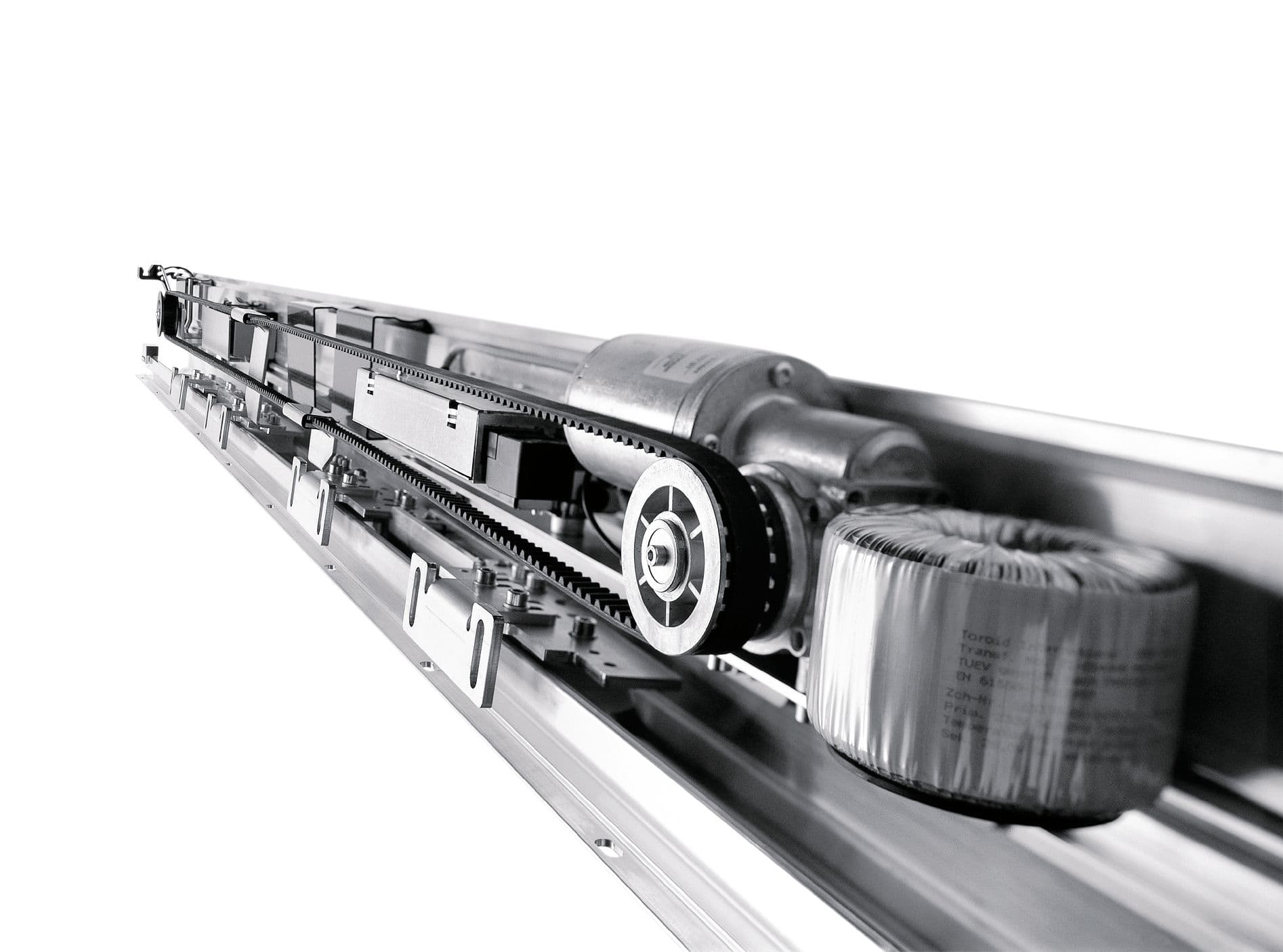

Bi-parting automatic door drive (can also be used for single leaf doors)
Header size: 100mm (H) x 180mm (D) x up to 6000mm (L)
Optional 150mm high canopy available - See options below
Single leaf weight max 1 x 200kg - Clear passage width LW 700 - 3000mm
Double leaf weight max 2 x 160kg - Clear passage width LW 800 - 3000mm
Clear passage height: 2100 - 3200mm
Power Supply: 230V AC, 50/60Hz
Class of protection: IP20
Standard canopy finish: Silver (SAA) - For RAL colour finish use drop down box to choose
Sold only to competent engineers (training available)
Standard unit sold with 100mm SAA canopy & without (optional) lock
Note: FM module is required when using rear edge safety sensors (see Part: 4000175)
